01
Gasket-only repair
AED 700 to 1,500Fitted estimate
For a serviceable cover and ventilation system. Includes a compatible gasket set, required separate plug-well seals, routine removal and refitting, cleaning and final leak checks.
Burning oil smell, oily spark plugs and misfires
BMW Valve Cover Gasket Replacement in Dubai
For a confirmed valve-cover leak, compare gasket-only work with replacing a damaged cover. We inspect the cover, seals and crankcase ventilation, then quote the parts and access needed for your engine. A burning smell or misfire alone does not identify the source. If it is uncertain, start with our BMW oil-leak assessment.
Gasket onlyCover is sound and flat
New coverAssembly replacement confirmed
Required sealsPlug wells and grommets
Compare the fitted repair
BMW Valve Cover Gasket Replacement Cost in Dubai
Start with the condition of the cover. A sound cover may need new seals; a damaged cover needs a different quote.
Quoted individually
V8 engines and additional repairs
Each affected bank is priced separately. Damaged threads, wiring, ignition parts, ventilation hoses and other leaks are assessed and quoted before extra work is approved.
Know the total before work starts
These researched planning estimates cover selected four- and six-cylinder applications. Initial diagnosis, recovery and unrelated repairs are excluded. Your written quote lists the cover or gasket manufacturer, part condition, labor, consumables, required fasteners, checks, applicable VAT and the final payable total.
The inspection fee is confirmed before booking. Tell us your model and symptoms; we identify the engine and suitable parts.
Estimates are not fixed workshop offers.
More than one seal
What the Valve Cover Gasket Seals

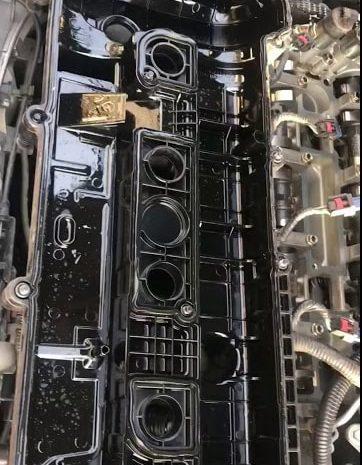

The valve cover sits on top of the cylinder head and keeps the oil that lubricates the camshafts and valves inside the engine. The main gasket runs around its edge, but on most BMW engines there are several smaller seals in the same job.
The seal arrangement varies by engine and cover revision. We identify the required gasket set and inspect accessible seals before recommending related work. Replacing an affected set during the same access can avoid repeat labor, but a filler-cap seal or ventilation component is not automatically included in every job.
APerimeter gasket
The rubber seal around the outer edge of the cover, between the cover and the cylinder head.
BSpark plug well seals
Rings around each spark plug opening that keep oil out of the plug wells.
CBolt grommets or sleeves
Small seals under the fixings that stop oil seeping past the bolts.
DOil filler cap seal
The cap sits in the cover on many engines and its seal hardens too.
EBuilt in ventilation parts
On several engines the crankcase vent is part of the cover itself.
Symptoms need a confirmed source
Signs of a Leaking BMW Valve Cover Gasket
These signs can occur separately or together. They do not form a predictable sequence, and a small visible seep does not establish that driving is safe.
Oil at the cover edge
A damp line at the cylinder-head joint may collect dust. We check the highest fresh trace rather than assuming the wettest area is the source.
Unexplained oil loss
Oil may collect on the engine or undertray without leaving a puddle. Consumption and other leaks must also be considered.
Burning oil smell
Oil reaching a hot exhaust surface is one possibility. A strong smell needs assessment rather than being treated as a normal feature of an older BMW.
Smoke under the bonnet
Stop safely and switch off. Keep clear of hot components and arrange help. If there is fire or immediate danger, move people away and contact emergency services.
Oil in spark plug wells
A plug-well seal may allow oil around an ignition coil. The wells, boots and plugs are inspected before any ignition parts are recommended.
Rough running or misfire
Oil contamination can contribute, but ignition, intake and fuel faults can feel similar. Severe misfiring or a flashing warning needs prompt assessment.
An oil-pressure warning is different from a low oil level
Stop safely, switch off and do not restart for an oil-pressure warning. Adding oil does not establish that the fault is resolved. Follow the vehicle warning and arrange recovery.
The decision that changes the price
Gasket Only or a Whole New Valve Cover?

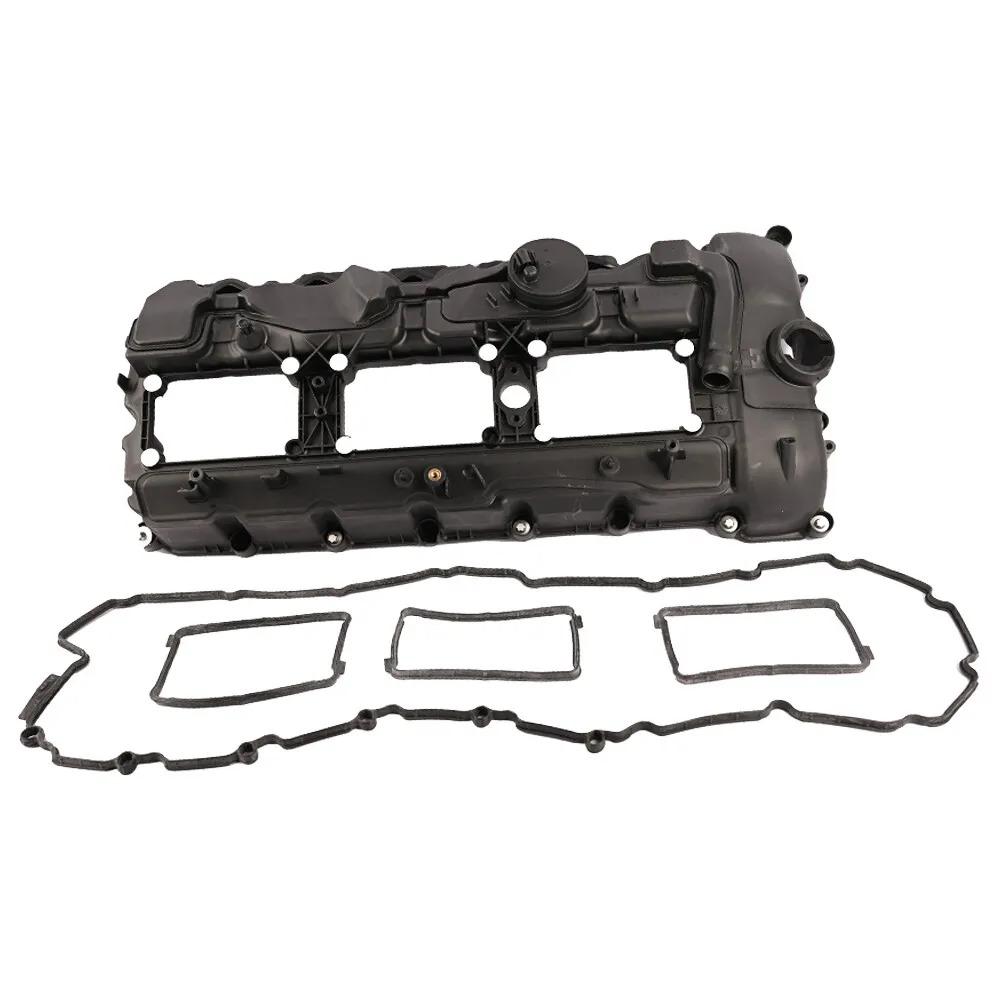

Many BMW engines use a plastic valve cover. A new gasket in a cracked or warped cover will leak again, so we check the cover itself before quoting.
A new gasket is enough when
- The cover is flat and free of cracks, especially around the bolt holes
- The ventilation arrangement passes the checks specified for that engine, including pressure measurement where applicable
- The oil filler neck and any sensor openings are undamaged
- The leak is from the gasket line, not through the plastic
A new cover is needed when
- There are cracks in the plastic, often near the bolt holes or the edges
- The cover has warped and no longer sits flat on the head
- A confirmed integrated ventilation fault requires cover replacement under the applicable repair procedure
- The cover’s sealing groove or fastener seats are damaged; cylinder-head thread damage needs a separate repair assessment
On applicable N55 covers, crankcase ventilation is integrated into the assembly. We check the fitted revision and the supported repair procedure before quoting a complete cover. Whistling, a lean-running code or a difficult-to-remove oil cap is not proof of a failed cover by itself. Ventilation checks must use the method and limits for the actual engine. Our PCV valve replacement page explains how to tell a failed vent from a gasket leak.
When the leak goes inwards
Oil in the Spark Plug Wells and Misfires
The spark plugs sit in wells that pass through the valve cover. When the seals around these wells harden, oil seeps down into them instead of out of the engine, so there may be no visible leak at all.
Oil reaches the coil boot
The rubber boot softens and swells, and the spark can track to the cylinder head instead of the plug.
The engine misfires
Oil contamination can affect ignition, but misfire testing must also consider other causes.
Coils get blamed
A new coil may cure it for a while, but the oil comes back until the seals are replaced.
When we find oil in the wells, we clean them, check the coils and plugs and tell you which ones are damaged. Our ignition coil replacement and spark plug replacement pages cover those parts.
What we see by engine
Valve Cover Leaks by BMW Engine
These engine and model pairings are examples. Check the VIN, build date and fitted cover before selecting a gasket, ventilation part or complete assembly. For a V8, the quote should identify the affected bank.
M52 and M54E46, E39, E53 X5, E83 X3, Z4
Separate gasket and grommets under the cover nuts. Older cars often need the full set and a careful clean.
Gasket set commonN52325i, 328i, 330i, 528i, X3, X5, Z4
Early N52 engines can have a magnesium cover; later revisions use plastic. The fitted cover, ventilation arrangement and required fasteners are checked before parts are ordered.
Gasket set commonN54135i, 335i, 535i, X6 35i, Z4 35i
If oil reaches hot exhaust or turbo components, smoke or a burning smell can follow. Trace the fresh oil back to its source.
Gasket set commonN55335i, 435i, 535i, X3, X4, X5, X6
Check the fitted plastic cover and integrated ventilation. Cracks, distortion or a confirmed non-serviceable vent fault can require a complete assembly.
Check cover and ventilationN20 and B48320i, 328i, 520i, X1, X3, 330i
Confirm the ventilation arrangement on the fitted four-cylinder cover. Ask which finding supports gasket work, a ventilation repair or a complete cover.
Check the ventN63 and S63550i, 750i, X5 50i, X6 50i, M5
Two covers on a hot V8. Access varies by engine revision. Each bank is assessed and quoted separately; work on both covers needs a reason.
Two coversOn some engines the job is mostly the cover itself. On others, intake parts, wiring trays, coil covers or heat shields have to come off first, and a V8 may need additional access or work on more than one bank. That is why two quotes for the same gasket can be far apart, and why we confirm your engine code before giving a figure. Your model and symptoms are enough to begin. We identify the engine and may request further details privately for exact parts matching.
The Dubai effect
Why Plastic Valve Covers Crack in Dubai Heat
Every drive heats the cover and every stop lets it cool. Over years of these heat cycles, the plastic and the rubber gasket both harden. Operating temperature, age, previous installation and component condition all matter. Dubai weather alone does not establish why a particular cover has failed.
Heat soak
After the engine stops, heat rises into the cover with no airflow to carry it away.
Hard rubber
A gasket that has lost its spring cannot follow the cover as it expands and contracts.
Stress at bolt holes
Overtightened or uneven fixings concentrate stress where cracks usually start.
That is why the tightening matters as much as the gasket. The cover bolts are tightened in sequence to the specified torque, so the cover sits evenly and the plastic is not stressed.
Not every top end leak is the valve cover
Leaks That Look Like a Valve Cover Gasket
Oil runs downhill and spreads, so the wettest spot is often below the real source. These are the leaks we rule out before quoting.
Oil filter housing gasket
Sits at the side of the engine and can coat the same area. It is a separate repair covered on our BMW oil leak repair page.
Vacuum pump seal
At the gearbox end of the engine, the pump seal can leak onto the back of the head. See our vacuum pump leak repair page.
Turbo oil feed line
On turbo engines the feed line runs near the cover and its seals harden in the heat. See our turbo oil leak repair page.
Oil filler cap
A hardened cap seal leaves oil around the filler neck that looks like a cover leak.
Timing cover
At the front of the engine, a timing cover leak can track back along the head.
Overfilled oil
An incorrect oil level or abnormal crankcase pressure needs investigation. Overfilling is not proof that a particular gasket has failed.
We first assess fluid loss, smoke and hot-surface risks. The area is cleaned and inspected; running checks are performed only when safe. Where the source is still unclear, a suitable approved tracer may help identify the leak path. You pay for the leak you actually have, and if we find a second leak nearby, we show you photos and price it separately so you can decide what to fix now and what can wait.
What goes into the job
Parts Renewed With the Gasket
The cover only comes off once, so we replace the seals that would otherwise need the same labour again later.
Main valve cover gasketAlways
Spark plug well sealsAlways, where fitted separately
Bolt grommets or sleevesWhere the engine uses them
Oil filler cap sealIf hardened or cracked
Sensor seals in the coverWhere the engine has them
Ventilation hose jointsIf brittle when removed
Spark plugs and coils are not part of the gasket job, but they come out with it on many engines. If your plugs are near their change interval, doing them at the same time saves paying for the same access twice. We tell you their condition and leave the choice with you. An oil change is not automatically required because the level fell. We check the correct level, contamination and service needs; our BMW oil change page explains oil selection and scheduled servicing.
How the job is done
Valve Cover Gasket Replacement Process in Al Quoz
Every step is aimed at one result, a cover that seals evenly and stays dry. Repeat leakage can result from a damaged cover, an incorrect seal, poor surface preparation, installation errors or an unresolved ventilation fault. These possibilities are checked rather than assuming another gasket alone will solve the problem.
- Confirm the sourceAssess safety and separate an active cover leak from spilled oil or a nearby source. Clean and inspect; run only when safe.
- Check the coverCracks, flatness and the built in ventilation.
- Quote on WhatsAppGasket only or new cover, with photos and the full cost.
- Remove and cleanCoils, wiring and cover removed. Sealing faces cleaned of old gasket and oil.
- Fit new sealsGasket, plug well seals and grommets fitted, with sealant only where the engine design calls for it.
- Torque in sequenceFollow the engine-specific sequence, torque and any required angle settings; renew one-time-use fasteners.
- Clean and testRemove spilled oil and perform safe operating and leak checks.
Compare the work included
Three Example Valve Cover Quotations
These are example repair budgets, not completed customer jobs or fixed offers. Each assumes the stated repair is confirmed. Initial diagnosis and recovery are separate.
2004 BMW 325i with M54
Gasket-only repairAED 1,100New compatible gasket set and applicable grommets, routine fitting, cleaning and leak checks. Assumes the existing cover is sound. Ignition parts and unrelated oil leaks are excluded.
2014 BMW 535i with N55
Compatible complete coverAED 3,000New compatible cover with its gasket and required fittings, installation and final checks. Exact supplier and integrated ventilation arrangement are confirmed. A genuine assembly may cost more.
2015 BMW 320i with N20
Gasket and applicable sealsAED 1,400New compatible gasket set, agreed access seals, installation and leak checks on a serviceable cover. A damaged cover, ventilation fault or contaminated ignition component is additional.
Compare the same scope when reviewing estimates. A cheap gasket price does not include access labor, while a complete cover quote should identify the assembly and the seals supplied with it.
Know what you are approving
Your Valve Cover Repair Record
See the leak source
Ask to see the inspection photographs and the findings that support gasket-only work or cover replacement. A wet exhaust shield or oil on the undertray is not enough to identify the source.
Agree the parts and schedule
The written quote should identify the part supplier, affected bank where relevant, required fasteners and any ventilation work. We confirm availability and the expected workshop time before work starts. Extra findings are explained and priced separately.
Keep the handover details
Keep the invoice, part details, completed checks and written warranty terms. Ask whether anything needs follow-up and how to arrange a recheck. Images on this page show repair topics and are not proof of a specific completed customer job.
Before you book
BMW Valve Cover Gasket Questions Answered
Can I drive with a leaking valve cover gasket?
A light visible seep does not establish that driving is safe. Stop safely and switch off for smoke, a strong burning smell, an oil-pressure warning or severe misfiring. Arrange assessment or suitable recovery. Adding oil does not repair the leak.
Do I need a gasket or a complete cover?
A serviceable cover may need only its applicable gasket set. Cracks, warping or a non-serviceable integrated ventilation fault may require the complete cover. We identify the failure before quoting.
Does every BMW have a plastic valve cover?
No. Cover materials and ventilation arrangements vary, including magnesium covers on early N52 applications. Parts and fasteners must match the fitted version.
What is included in the fitted estimate?
The agreed gasket or cover, required seals and fasteners, labor, cleaning and checks are itemized. diagnosis and any additional work are shown clearly before approval.
Can oil in plug wells cause a misfire?
It can contaminate coil boots and contribute to ignition problems. We clean the wells and inspect the affected ignition parts. Oil in a well does not automatically mean every coil or spark plug must be replaced.
Will both V8 covers need replacing?
Not automatically. We assess each bank and explain any benefit or need for combined work. The quote identifies which side is included.
How long does replacement take?
The engine, access and parts availability determine the schedule. Gasket-only work on an accessible engine is different from two-bank or damaged-cover work. We confirm the expected completion time with your quote.
Are spark plugs and an oil change included?
Not unless listed. Plugs may be worth replacing if due or damaged. An oil change depends on contamination and service requirements, rather than being automatic after a gasket repair.
Why did a previous gasket replacement still leak?
Possible causes include a damaged cover, incorrect installation, an unresolved ventilation fault or a separate leak nearby. The source needs tracing again before another parts order.
Do you use sealant everywhere?
No. The specified gasket and engine repair instructions determine whether sealant is required at particular locations. Excess sealant is not a substitute for a correctly fitted gasket.
What parts and warranty are available?
We quote suitable genuine BMW or named supplier options where available. Ask for the supplied part, warranty duration, labor coverage and exclusions in writing before approval. No single warranty term applies to every option.
Can you collect my BMW?
Free pickup is offered across Dubai. Tell us if there is smoke, severe misfiring or an oil-pressure warning so suitable transport can be arranged. Our workshop is in Al Quoz, Monday to Saturday, 9am to 7pm.
What happens if oil or smoke returns?
Contact us for a recheck. Residual spilled oil and a continuing leak need to be distinguished through inspection; ongoing smoke should not be dismissed as normal.
Burning smell or oily plugs?
Get the Valve Cover Leak Sorted
Tell us your model and what you have noticed. We collect the car for free anywhere in Dubai, confirm where the oil is coming from and send you the full cost before any work starts.
- Free pickupAnywhere in Dubai
- Cost firstSent before work
- OpenMonday to Saturday, 9am to 7pm
