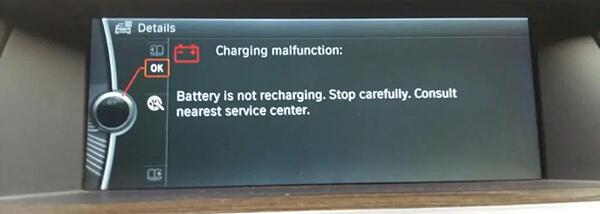

What the charging warning means for your next step

On an alternator-equipped BMW, a warning while the engine is running can mean that the vehicle is not receiving the electrical supply it needs. The battery may temporarily supply the deficit, but the warning does not reveal how much usable charge remains. A new battery cannot compensate indefinitely for a charging or connection fault.

Follow any instruction to stop carefully

Stop in a safe place if instructed, or if the car loses power, develops heavy steering, overheats or smells of burning. Arrange suitable assistance. Do not repeatedly restart the engine to see whether the warning clears, and do not assume there is a safe number of kilometres left.

Use the handbook for the actual vehicle and preserve the exact Check Control wording. A low-charge message while parked is not automatically the same complaint as a charging warning during a journey. The checks also differ on mild hybrids, plug-in hybrids and electric BMWs. Model name alone does not identify the fitted electrical system.

If you are stopped in a Dubai basement, tell the recovery provider about the access height, location and whether the car starts or can be selected into neutral. A vehicle that cannot be moved normally may need a particular loading arrangement. Discuss this before transport rather than attempting an improvised battery or transmission release.

Compare when the charging problem occurs

The timing of the fault is often more useful than calling every symptom a bad battery. Record whether the warning appears with the engine running, after several days parked, immediately after battery work or during a plug-in charging session. These observations guide testing; none proves that a specific component must be replaced.

Different charging complaints need different checks
What you noticeWhat it may involveUseful next step
Charging warning while drivingSupply output, drive components, connections or control on the fitted systemFollow the warning instruction and describe any loss of power, steering change or temperature warning
Low battery charge while parkedLow starting charge, usage pattern, battery condition or excessive parked currentRecord parking duration and recent journeys; ask for battery and energy-history assessment
Clicking and no engine crankingBattery condition, connection resistance, starter supply or another starting-system faultUse the no-start diagnostic route rather than assuming alternator failure
Warning after battery replacementSpecification, installation, registration where required, or an unresolved charging/drain faultSupply the invoice, battery details and timing of the returning warning
Plug-in session will not startCharging settings, external equipment, socket/lock, low-voltage support or vehicle power electronicsRecord the message and affected AC/DC charging method; avoid damaged or overheating equipment

A slow crank or a rapid clicking sound can occur after a battery has lost charge, but it cannot establish why that happened. Our BMW clicking noise and not-starting guide covers that related starting complaint. Keep the charging warning and the starting symptom in the history if both occurred.

What you can record safely with the car parked

Once safely parked, photograph the exact warning and note the model, year, powertrain and whether the engine starts. Describe when the warning first appeared and whether lights, the instrument display or other systems changed at the same time. Take photographs only when stationary; the driver should not operate a phone during a journey.

  • Recent work — Mention a battery change, jump-start, alternator or belt work, accessory installation or water ingress before the fault.
  • Journey and parking history — Record short journeys, several days parked or a fault that appears only when hot. These are test conditions, not a diagnosis.
  • Visible concerns — Report accessible signs of a damaged case, leakage, smoke or burnt insulation without touching or dismantling the area.
  • Starting and recovery needs — Explain whether the car starts and where it is parked before deciding how to bring it in.

Do not disconnect a battery cable with the engine running to test the alternator. Do not bridge terminals or put multimeter probes across a battery with the leads in the current sockets. Avoid reaching near a belt or fan, opening a battery sensor connector or cleaning terminals as an experiment. A battery and its connected cables can deliver very high fault current.

HELLA's alternator testing guidance explicitly rules out terminal disconnection during operation. If external charging or a jump-start is being considered, use the instructions and designated points for the actual vehicle. Do not assume another BMW's battery-access or connection procedure applies to yours.

Identify the fitted charging system before testing

The workshop should identify the vehicle by VIN, production information and equipment before selecting tests or parts. Some combustion BMWs use a conventional alternator. Others add a 48-volt system and starter-generator. Plug-in hybrids and electric models have high-voltage systems and model-specific power electronics supporting their low-voltage network.

Conventional low-voltage supply

On a conventional arrangement, the alternator supplies electrical consumers and replenishes the battery while the engine runs. The drive, regulator, output wiring and earth paths all matter. Charging control may change output according to operating conditions and energy-management information; the expected behaviour is not one fixed voltage at every moment.

Mild hybrid and plug-in systems

A 48-volt starter-generator and converter arrangement requires its own diagnostic path. On applicable hybrid and electric BMWs, a DC/DC converter supports the low-voltage supply. A fault with low-voltage support is different from a failed external AC or DC charging session, even though an owner may use the same word, charging, for both.

Do not open high-voltage components, handle orange cables or attempt isolation. Appropriate training, equipment and vehicle-specific procedures are required. For an external charging complaint, keep the cable, charging-point and vehicle observations separate and confirm that the workshop supports the requested work on your exact model.

Battery charge health and sensor information are different

State of charge describes the charge available now. Battery health concerns its ability to perform the required job. A serviceable battery can be undercharged, while a deteriorated battery may show a plausible voltage with little useful capacity under demand. An isolated reading cannot establish both conditions.

Connected battery sensor at the negative terminal of a secured battery
A battery sensor and its connected wiring provide information for energy management. Their appearance alone does not establish a sensor fault.

Where fitted, the intelligent battery sensor provides information such as voltage, current and temperature. The relevant control system uses battery information to manage charging. An implausible value or communication fault should prompt corroborating checks of supply, wiring and the sensor signal; it does not justify replacing every part named in a fault description.

HELLA's regulator and energy-management explanation describes how operating state and sensor inputs affect control. The communication arrangement and expected values still depend on the vehicle. A normal-looking reading at one instant does not clear an intermittent charging fault.

The workshop should establish the battery's specification, condition and charging history, and recharge or retest where the applicable procedure requires it. Battery age helps provide context, but it is not a substitute for evidence that the battery cannot perform adequately. Equally, a battery that passes its own test does not clear its cables or charging supply.

What workshop testing should establish

A useful investigation connects the complaint to a finding. Ask what was tested, under what conditions and what remains uncertain. An engine-code scan alone cannot establish the condition of the complete electrical supply. Codes guide diagnosis, while physical checks and measured behaviour confirm or challenge the suspected cause.

Record relevant faults and operating conditions
Read appropriate control units and available energy-management history before clearing records. Compare warning timing, recent work and any intermittent pattern with the data.
Assess the battery and connections
Check the correct battery specification and condition, relevant power distribution, terminals and earth paths using the applicable procedure. Address a discharged battery appropriately before interpreting further tests.
Compare requested and actual charging behaviour
Use suitable operating conditions and loads for the fitted system. Evaluate relevant control and sensor information alongside voltage and current measurements rather than treating one display value as the verdict.
Localise the electrical or mechanical defect
Where indicated, investigate cable voltage drop, drive components, regulator communication, output or rectifier behaviour. On electrified systems, follow the relevant converter and vehicle-specific diagnostic path.
Current clamp around one insulated battery cable during a workshop check
A suitable clamp can measure current around one conductor without opening that circuit. Equipment, test conditions and interpretation still need to match the investigation.

Voltage-drop testing helps determine whether resistance in a cable or earth path is losing supply under demand. A connection may appear acceptable until current flows through it. This distinction matters because replacing an alternator cannot repair a damaged cable, and replacing a battery cannot repair an unsuitable earth connection.

Output current changes with load, charge acceptance and control. It should not simply be compared with a battery's printed starting-current rating. Likewise, resting voltage, charging voltage, current and battery capacity are different measurements. The workshop should explain what each result establishes and what it cannot prove.

DENSO's alternator troubleshooting guidance covers surrounding components, voltage-drop checks and using the vehicle manufacturer's test standards. Its general principles support a test sequence; they are not universal BMW limits or an instruction for owners to probe live alternator connections.

When alternator drive and connection faults need different repairs

On an alternator-equipped vehicle, a damaged belt, unsuitable tension, a drive-pulley concern, poor output connection and an internal alternator defect can all affect charging. A noise near the alternator may also involve another driven component. The source and electrical behaviour need assessing together before specifying the repair.

Conventional alternator auxiliary belt and tensioner on a workshop bench
A conventional alternator, auxiliary belt and tensioner have different roles. A charging complaint does not establish that all three require replacement.

A suitable investigation may include drive inspection, output under defined conditions and rectifier or ripple checks where indicated. Confirmed internal alternator failure may lead to repair or replacement, depending on the component and available service options. A regulator, pulley or mounting concern requires an explanation of what can be serviced reliably on that unit.

Replacement selection needs the correct fitment, output capability, regulator/control compatibility and drive arrangement. Ask why the proposed part matches your vehicle and whether any associated work is necessary. The BMW alternator replacement service is the route for discussing confirmed alternator work; it is not a reason to order a unit from the warning alone.

Why the warning can return after a battery replacement

A new battery may temporarily restore starting without correcting why the old one lost charge. The returning warning should be compared with the original complaint. Ask whether the old battery actually failed its test, whether charging was assessed and whether the new battery's type and capacity match the approved specification.

On models requiring registration, the replacement must be recorded for energy management. An approved change in battery type or capacity may require coding as well. Registration records a replacement; it does not repair defective wiring, a failed charging supply or excessive current consumption after shutdown.

Installation-related connections and sensor wiring also need checking when the timing points to recent work. Provide the battery invoice and any test report instead of approving another battery immediately. Our BMW battery replacement service covers the fitting and applicable registration work, while the underlying warning may still require a separate investigation.

Parked discharge and Dubai driving conditions need context

A battery that becomes flat after parking may have started with low charge, deteriorated, or supplied an excessive load after the vehicle should have entered its resting state. Short journeys and long parked periods also affect the charge balance. These possibilities should be separated from inadequate supply while the engine is running.

If excessive parked current is suspected, the workshop may need time to observe the vehicle's sleep behaviour and reproduce the condition. Repeatedly opening doors or waking systems can change that behaviour. Ask what monitoring is proposed and whether overnight access is needed rather than expecting one quick reading to identify every drain.

Tell the workshop about a fault that occurs after hot parking, in slow traffic with the AC operating, or only on the first journey. Dubai conditions provide useful test history, but heat is not proof that a battery, sensor or alternator has failed. Normal factory electrical loads should be considered during testing; owners should not be told that ordinary use alone establishes misuse.

Have added dashcams, audio equipment or other accessories assessed if their installation or use coincides with the complaint. Follow vehicle guidance for battery care during storage. Avoid choosing a charger, disconnecting a sensor or altering a monitoring setting simply to suppress a warning.

Match the quote and final checks to the finding

There is no single component price attached to a charging warning. The quote should follow the investigation and identify the supported repair. A connection repair may restore the supply without replacing the alternator; a battery change is appropriate when its condition and specification justify it. Ask which finding makes each proposed item necessary.

  • Diagnosis — Confirm the inspection charge, included tests and how additional or overnight investigation will be approved.
  • Parts and fitting — Identify the component, specification and brand, labour, associated fitting items and any applicable registration or coding.
  • Total and cover — Confirm the complete fitted price, availability and written warranty terms for the selected repair.
  • Verification — Ask for relevant repeat-test results, fault-record reassessment and an explanation of any condition that could not be reproduced.

Clearing a warning or fitting a charged battery is not the same as confirming the original fault is resolved. The handover should explain what changed, how charging or parked behaviour was checked and whether anything needs follow-up. Arrange the commercial assessment through the BMW charging-fault diagnosis and repair service.

BMW charging malfunction questions

Is it safe to drive to the workshop with a charging warning

A warning does not establish remaining battery capacity or a safe distance. Follow the exact vehicle message and handbook. Stop safely if instructed or if power, steering assistance, temperature or burning smells change, and discuss appropriate recovery before moving the car.

Does one low voltage reading prove the alternator has failed

No. The fitted architecture, operating state, charging request, battery condition and connection losses affect interpretation. Relevant measurements under suitable conditions are needed before condemning an alternator or regulator.

Will a jump-start fix the charging malfunction

A successful jump-start only shows that the engine could be started under those conditions. It does not establish that charging supply is restored or explain the original discharge. Follow the specific vehicle procedure if assistance is appropriate; do not use repeated starts as a diagnostic test.

Does every BMW have a conventional alternator

No. The arrangement varies by powertrain and specification. Mild hybrid, plug-in hybrid and electric BMWs can involve starter-generators and power converters. Identify the vehicle before selecting the diagnostic path or ordering a part.

Does a battery warning mean the high-voltage battery needs replacing

No. A low-voltage supply concern and a high-voltage or external charging-session fault are different possibilities. Preserve the exact message and powertrain information. High-voltage diagnosis and work need appropriately qualified personnel and vehicle-specific safety procedures.

What information helps with an intermittent charging fault

Provide the exact warning, model and year, whether the car starts, timing and operating conditions, parking duration and recent electrical work. A safely recorded warning photograph and previous test or battery invoice help the workshop plan an appropriate investigation.

Published by BMW Repair Dubai. The linked component-manufacturer references support general diagnostic principles. They do not identify a fault in an individual BMW or replace the applicable vehicle procedures. The exact model, fitted system and test findings govern any repair.
