ZF 6 and 8 speed automatics, M DCT, sleeves and programming
BMW Mechatronic Replacement in Dubai
The mechatronic unit is the brain and the hydraulic heart of a BMW automatic gearbox. When it fails, shifts turn harsh, gears go missing or the car drops into limp mode. We confirm whether the unit, its sealing sleeve, the fluid or a single solenoid is at fault, then repair, replace and program only what is needed.
- ZF 6HPOlder 3, 5 and X models
- ZF 8HPMost BMWs since about 2010
- M DCTDual clutch M cars
Inside the gearbox
What the BMW Mechatronic Unit Does

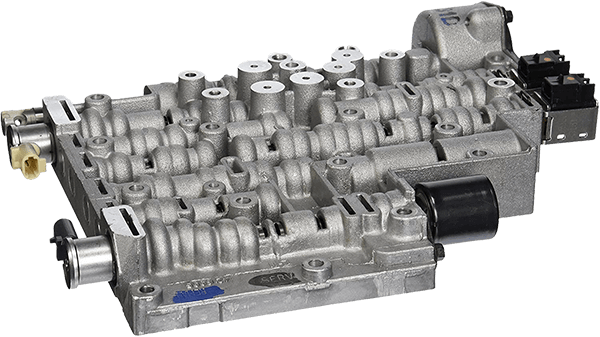

On ZF automatics, the gearbox computer and the hydraulic valve body are built into one assembly that sits inside the gearbox oil pan. That assembly is the mechatronic unit.
The electronic part reads road speed, engine torque and your throttle, then decides when to shift. The solenoids turn those decisions into oil pressure, and the valve body sends that pressure to the clutches inside the gearbox. Because all three live together in hot gearbox fluid, a fault in one often shows up as a shifting problem in all of them.
On the M DCT gearbox the idea is the same, but the design is different. Its control unit and hydraulic block manage two clutches instead of the torque converter and clutch packs used in the ZF automatics, and its faults and parts follow their own rules.
The unit is also coded to the car. It stores the car identity and adaptation values that tune each shift to the wear of that particular gearbox. That is why a replacement unit always needs programming before it will shift properly.
Electronics that decide every shift and store faults and adaptations.
Turn electrical commands into precise oil pressure.
Channels and valves that route pressure to each clutch pack.
Carries the wiring through the gearbox case and keeps fluid in.
What the car tells you
Signs of a Failing Mechatronic Unit
Mechatronic faults tend to start small and get worse with heat. Most owners notice them first on a hot afternoon in slow traffic.
A thump into gear, or a pause before the car moves off in drive or reverse.
A gearbox malfunction message, often with reduced power or a locked gear.
Limp mode, where the gearbox holds a single gear to protect itself.
The revs jump during a shift as a clutch slips before it grips.
The selector moves but the car does not, sometimes only when hot.
Gearbox fluid around the electrical plug on the side of the gearbox.
Not every one of these means the mechatronic unit has failed. Low fluid, old fluid, a weak battery or a sensor fault can cause the same symptoms for much less money. Gearbox warnings in general are covered on our BMW transmission malfunction page, and we always test before we condemn a unit.
A useful clue is when the problem appears. Faults that show only when the gearbox is hot point to fluid, sleeve leaks or worn valve body bores. Faults that appear cold, or come and go with a warning on the dash, more often point to the electronics, the wiring or the battery.
What it costs
BMW Mechatronic Replacement Cost in Dubai
A sealing sleeve and fluid service is a small job. A valve body repair sits in the middle. A complete mechatronic unit with programming is the largest. These are prices published by other businesses for all makes.
We read the gearbox faults, check the fluid and the sleeve, then send the cost of each option.
These prices are published by other businesses, not by us. They were checked in November 2026 and can change at any time.
The final cost depends on whether the unit can be repaired or must be replaced, whether a new, remanufactured or used unit suits the car, and how much programming the model needs. M DCT units and the latest 8 speed versions sit at the higher end.
A full gearbox replacement is rarely needed for a mechatronic fault. Testing first often shows that the gearbox itself is healthy and only the control side needs work, which keeps the bill a fraction of a replacement gearbox.
We also tell you when a repair is not worth doing, for example on a high mileage gearbox with worn clutch packs, so you can decide with the full picture.
The most common leak
The Mechatronic Sealing Sleeve Leak
The sealing sleeve is a small plastic adapter with rubber seals that lets the wiring connector pass through the gearbox case. When its seals harden, gearbox fluid leaks out at the plug.
A leaking sleeve does two kinds of damage. Fluid slowly drains from the gearbox, and fluid can creep along the wiring towards the connector and the gearbox control unit. A small leak left for a long time can turn a low cost sleeve into a mechatronic problem.
The sleeve has to be fitted at exactly the right depth. ZF and BMW warn that a sleeve that sits too proud causes intermittent connection faults and can damage the connector pins, which then means a new mechatronic unit. That is why we measure the fitted depth every time.
The sleeve is reached by draining the fluid and removing the oil pan, so it makes sense to fit a new pan with its built in filter and fresh fluid at the same time. Doing both together saves paying for the same labour twice later.
Know your gearbox
Which BMW Gearboxes Use a Mechatronic Unit
Most automatic BMWs on Dubai roads use one of three gearbox families. Each has its own mechatronic unit, parts and programming.
Fitted to many E series models such as the E90 3 Series, E60 5 Series and E70 X5. Sleeve leaks and worn valve body bores are common at this age.
Used in most rear wheel drive and xDrive F and G series BMWs, from the 3 Series to the X7. A strong gearbox, but sensitive to old fluid and sleeve leaks.
Found on M3, M4 and M2 models with the dual clutch gearbox. Its control unit and hydraulics are a different design from the ZF units.
If you are not sure which gearbox your BMW has, send us the chassis number and we will check it. Manual and clutch faults are covered separately on our BMW clutch replacement page.
Each gearbox also comes in several versions to suit different engines, so an 8 speed unit from a four cylinder car is not the same as one from a V8. Matching the exact part number and software version is part of every quote we give.
Choosing the fix
Repair, Rebuild or Replace the Mechatronic
A failed mechatronic unit does not always mean a new one. We pick the option that fixes the fault at the lowest sensible cost.
For a single failed solenoid, a worn valve body bore or a faulty pressure regulator, where the electronics are healthy.
Suits older ZF 6HP units most oftenFor an electronic failure, where a tested unit is fitted and programmed to your car.
Must match the gearbox type and be coded correctlyFor newer cars or where no reliable used unit is available. Highest cost, longest life.
Programmed online to the carA used mechatronic unit is not plug and play. It carries the identity and adaptations of the car it came from, so it has to be reset, coded and adapted to your gearbox. Fitting one without this is a common reason for harsh shifts after a cheaper repair elsewhere.
Before choosing between repair and replacement, we check the clutch packs and the fluid for signs of internal wear. If the clutches themselves are worn, a new mechatronic unit alone will not cure the problem, and we tell you that before any money is spent on the unit.
The step that is often skipped
Programming and Adaptation After Fitting
A new or replacement mechatronic unit will not shift smoothly until it has been programmed to the car and the gearbox has learned its own shift points.
The unit is loaded with the correct software for the car and coded to its identity.
Old shift values are cleared so the unit starts learning from zero.
A set drive cycle lets the gearbox learn each clutch at working temperature.
The level is set hot, at the temperature ZF specifies, through the filler plug.
For the first few days after a mechatronic job the gearbox keeps adapting as you drive. Shifts often become smoother over the first hundred kilometres or so, and we tell you what is normal before you take the car home.
If the battery is weak, programming can fail part way through, so we connect a stable power supply to the car for the whole process. A failed programming session is one of the ways a healthy unit gets damaged.
Protecting the new unit
Gearbox Fluid, Pan and Filter on BMW Automatics
BMW often describes the gearbox fluid as long life. In Dubai heat and traffic, that fluid works much harder than the schedule assumes, and old fluid is hard on solenoids and valves.
On the ZF 8 speed the filter is built into the plastic oil pan, so a fluid service means a new pan, new fluid and a careful level check. ZF itself publishes fluid change advice for its gearboxes, and changing the fluid at sensible intervals is the lowest cost way to protect the mechatronic unit.
Leaks from the pan, the cooler lines or the sleeve all lower the fluid level, which shows up as harsh shifts when the gearbox is hot. Our BMW transmission leak page explains how we find and fix each one.
The wrong fluid is as harmful as old fluid. ZF gearboxes are designed around a specific fluid, and topping up with a general automatic fluid changes how the clutches grip and how the solenoids respond.
Why units fail
What Damages a BMW Mechatronic Unit
Mechatronic units are built to last the life of the gearbox. When they fail early, one of these is usually behind it.
- HeatLong summers in slow traffic keep the fluid and the electronics hot for hours.
- Old fluidWorn fluid carries fine particles that wear valve body bores and solenoids.
- Low fluidA leaking sleeve or pan lets air into the pump and the pressure drops.
- Voltage problemsA weak battery, poor earth or careless jump start can damage the electronics.
- Fluid in the connectorA sleeve leak can wick fluid into the plug and pins over time.
Many of these are preventable. A sleeve replaced at the first sign of a leak and fluid changed on time protect a unit that costs many times more than either job.
Remapped engines can also stress the gearbox. More torque means the clutches and the pressure control work harder, and some tuned cars need the gearbox software adjusted to match.
How the job is done

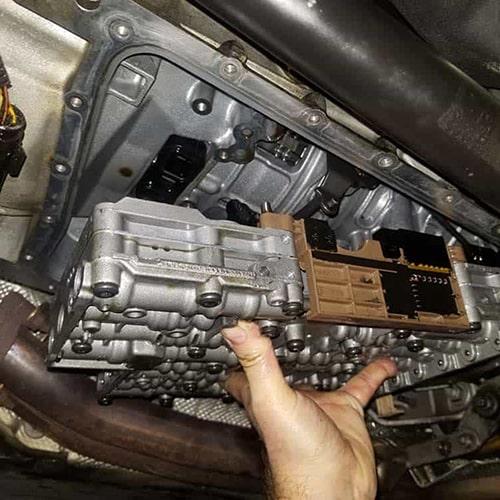

How We Replace a BMW Mechatronic in Al Quoz
Nothing is ordered until you have seen the cause and agreed the cost. Every step is done on the lift in our workshop, and you receive photos of the old unit, the sleeve and the fluid we drained, so you can see exactly what was wrong and what was replaced.
- Gearbox scan and road testGearbox faults, adaptation values and live pressure data are read while driving.
- Fluid and leak checkLevel, condition and the sleeve, pan and cooler lines are checked.
- Cause and optionsYou receive the finding and the cost of each repair option on WhatsApp.
- Repair or replacementThe unit is repaired or replaced with a new sleeve, pan, filter and fluid.
- ProgrammingSoftware, coding and adaptation reset with BMW level diagnostic tools.
- Learning drive and level checkA learning drive, then the fluid level is set hot and rechecked.
Owners ask us
BMW Mechatronic Replacement Questions
What is a mechatronic unit in a BMW?
The gearbox computer and hydraulic valve body built into one assembly inside the gearbox.
Can a mechatronic unit be repaired?
Often, yes. Solenoid and valve body faults can be repaired if the electronics are healthy.
Does a new mechatronic unit need programming?
Yes. It must be coded to the car and adapted before it shifts correctly.
Can I fit a used mechatronic unit?
Yes, if it matches your gearbox and is reset, coded and adapted to your car.
What is the mechatronic sealing sleeve?
A plastic adapter with seals where the wiring plug passes through the gearbox case.
Is a sleeve leak serious?
It starts small, but fluid loss and fluid in the connector can damage the unit over time.
Does BMW gearbox fluid need changing?
BMW calls it long life, but in Dubai heat a fluid change protects the gearbox.
Why are my shifts harsh after a repair elsewhere?
Often missing adaptation or a wrong fluid level. We check both.
How long does a mechatronic replacement take?
Usually one to two days once the part is in, including programming and a learning drive.
Do you collect the car in Dubai?
Yes. Pickup is free anywhere in Dubai. Our workshop is in Al Quoz and we are open Monday to Saturday, 9am to 7pm.
